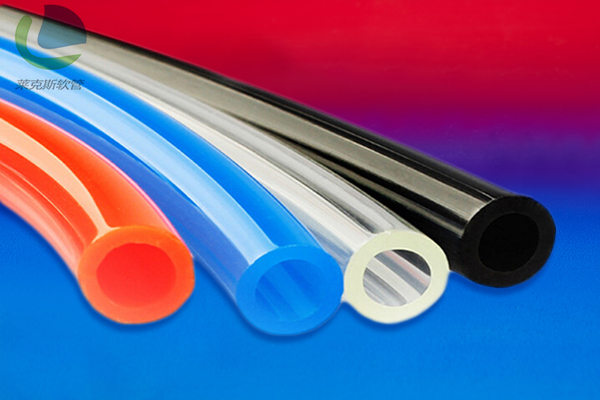

Polyurethane pneumatic hose LKE790

Product Features:

●Made of TPU raw materials, high pressure resistance, wear resistance, weather resistance, tortuous resistance, stable quality, etc.

●The pipe body is smooth and flexible, bright color, high elasticity, bending resistance, small bending radius;

●Temperature range: -15℃~+70℃.

Scope of application:

●Suitable for assembling pneumatic tools, pneumatic automation machinery, air compressors and connecting various pneumatic components.

Performance parameters:

●Abrasion resistance: 30mg

●Elongation: 390%-480%

●Burst pressure: 20℃-30kgf/c㎡

●Working vacuum: -25”hg60º-15kgf/c㎡

●Expansion strength: 300kgf/c㎡

●The ratio of burst pressure to long-term applicable pressure safety factor is 3:1

Specifications:

Tip: Polyurethane air pressure hose is suitable for compressed air, ordinary industrial water, non-corrosive oil. If it is to be used for a long time, it must be used at rated working pressure and ambient temperature. As the temperature rises, the working pressure should be reduced accordingly. If the limit is exceeded, the hose may break. High temperature of the fluid or corrosive chemical composition of the fluid may cause the hose to crack, high temperature of the working environment or chemical gas in the working space may cause the hose to crack; If the hose is stored in a wet place or for a long time, it will hydrolyze or age, which may lead to fracture.
