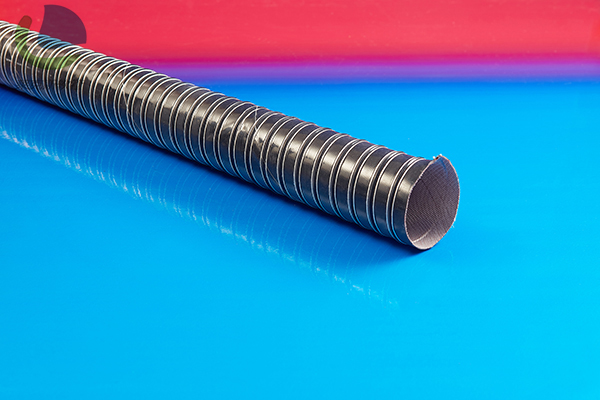

Neoprene hose LKE429
Material:
■Helix: Spring wire
■Thread: glass fiber fabric
■Tube wall: glass fiber coated neoprene
Application:
■ Plastic industry, dry hot air: pellet/plastic dryer, hot air dryer
■ Film blowing machine, squeezing tool cooling air,
■ Printing machinery, air supply: UV dryer, infrared dryer
■ Passenger cars, off-road vehicles, caravans/trailers, RVs/camping vehicles/recreational vehicles, boats, ships/boats, yachts: ventilation, heating
■Waste incineration plant, high temperature air or gas medium transportation
Characteristic:
■Double layer, fiber reinforced
■Lightweight, extremely small bending radius
■Good chemical resistance
■Good heat resistance
■The inner wall is smooth, easy to bend and not easy to kink
■No indentation after bending recovery
Temperature range:
■ -70°C to 300°C, up to 350°C in a short time
Specifications:
|
I.D |
O.D |
OP.pressure |
Length |
Item NO |
|
|
mm |
mm |
Positve Pressure (bar) |
NegativePressre (bar) |
M |
|
|
38 |
46 |
3.360 |
0.852 |
4 |
LKE-429-038 |
|
40 |
48 |
3.120 |
0.720 |
4 |
LKE-429-040 |
|
50 |
58 |
3.120 |
0.624 |
4 |
LKE-429-050 |
|
65 |
73 |
2.880 |
0.552 |
4 |
LKE-429-065 |
|
80 |
88 |
2.520 |
0.516 |
4 |
LKE-429-080 |
|
100 |
108 |
2.400 |
0.480 |
4 |
LKE-429-100 |
|
127 |
133 |
2.280 |
0.420 |
4 |
LKE-429-127 |
|
150 |
158 |
1.680 |
0.276 |
4 |
LKE-429-150 |
|
165 |
173 |
1.440 |
0.204 |
4 |
LKE-429-165 |
|
200 |
208 |
0.600 |
0.084 |
4 |
LKE-429-200 |
|
250 |
258 |
0.600 |
0.084 |
4 |
LKE-429-250 |
